xroI made a new thing...in <a href="https://chaos.social/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a>The world surely was missing a <a href="https://chaos.social/tags/3dprint" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#3dprint</a> able <a href="https://chaos.social/tags/Insta360" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Insta360</a> X4 battery travel case. 😅 So I made one.<a href="https://www.printables.com/model/1260884-insta360-x4-single-battery-case" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://www.printables.com/model/1260884-insta360-x4-single-battery-case</a>It even mimics the slot of the actual camera, if you add the optional spring.

Remy RoseA patron asked our makerspace to design and CNC mill a replica of the Gemeente-Energiebedrijf sign found all over Amsterdam. They brought us a screenshot of a stock photo and some 6mm thick aluminum to cut it out from. Here's a first rough draft, CAD/CAM in <a href="https://pxlmo.com/discover/tags/FreeCAD?src=hash" class="u-url hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a> and milled in a <a href="https://pxlmo.com/discover/tags/Snapmaker?src=hash" class="u-url hashtag" rel="nofollow noopener noreferrer" target="_blank">#Snapmaker</a> Artisan. I'm a novice at this stuff, you can probably tell from the results lol, but the next one will (hopefully) be better! <a href="https://pxlmo.com/discover/tags/CAD?src=hash" class="u-url hashtag" rel="nofollow noopener noreferrer" target="_blank">#CAD</a> <a href="https://pxlmo.com/discover/tags/cncmilling?src=hash" class="u-url hashtag" rel="nofollow noopener noreferrer" target="_blank">#cncmilling</a> <a href="https://pxlmo.com/discover/tags/library?src=hash" class="u-url hashtag" rel="nofollow noopener noreferrer" target="_blank">#library</a> <a href="https://pxlmo.com/discover/tags/makerspace?src=hash" class="u-url hashtag" rel="nofollow noopener noreferrer" target="_blank">#makerspace</a>

Misterxp -MartinThe biggest project I have made with <a href="https://fosstodon.org/tags/FreeCADNews" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCADNews</a> . I enjoyed doing it too and found it easier than expected.BIM work bench and Parts workbench for details. Tomorrow will make plan views. <a href="https://fosstodon.org/tags/Freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Freecad</a>, <a href="https://fosstodon.org/tags/BIM" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#BIM</a>, <a href="https://fosstodon.org/tags/3D" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#3D</a>

HuKI just passed SpreadSheets, when I started learning <a href="https://sw-development-is.social/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a> and went with VarSets.Risky move?The there was a bug (or could it be configuration issue) with font foreground color being white like the background, <a href="https://sw-development-is.social/@HuK/113969027695626531" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://sw-development-is.social/@HuK/113969027695626531</a>Now, to think of it, SpreadSheets would offer comment column and other stuff helping refactoring like variable naming not available with VarSet.Just started to generate ~156 parameters with Python to VarSet... Or maybe I should go w/ Spreadsheets?<a href="https://fosstodon.org/@FreeCAD" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@FreeCAD</a>

FinnIt's still not finished but today I made some progress!I am designing a case for the Xiao ESP32S3 Wio-SX1262 Meshtastic node!The display does not fit perfectly yet, I need to do the cutout in the lid for the display and make a button. But I am already pretty happy with the results, thank you <a href="https://fosstodon.org/@FreeCAD" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@FreeCAD</a> - it's really enjoyable to work with FreeCAD!When it's finished I want to install it in the attic as my stationary Meshtastic node.<a href="https://toot.fan/tags/Meshtastic" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Meshtastic</a> <a href="https://toot.fan/tags/3DPrinting" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#3DPrinting</a> <a href="https://toot.fan/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a>

Anton LazarevI designed a single-piece 3D printable Arca-Swiss quick-release clamp. Compliant mechanisms are so satisfying.Made with FreeCAD. Download the model and customize it to your needs: <a href="https://www.printables.com/model/1258735-compliant-arca-swiss-quick-release-clamp" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://www.printables.com/model/1258735-compliant-arca-swiss-quick-release-clamp</a><a href="https://fosstodon.org/tags/3dprinting" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#3dprinting</a> <a href="https://fosstodon.org/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a> <a href="https://fosstodon.org/tags/cad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#cad</a> <a href="https://fosstodon.org/tags/opensource" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#opensource</a> <a href="https://fosstodon.org/tags/compliantmechanism" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#compliantmechanism</a> <a href="https://fosstodon.org/tags/photography" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#photography</a>

int21hA ver se alguén con experiencia en FreeCAD me pode botar unha man:Teño unha matriz polar de buratos, configurable a través dunha folla de cálculo para escoller as dimensións e o número de buratos. Quero colocar un parafuso en cada burato, e para iso necesito facer outra matriz polar de parafusos, pero non atopo o xeito de facelo. Os parafusos creados co Fasteners Workbench parece que non son válidos para crear matrices con eles.Ocórreselle a alguén o xeito de facelo?<a href="https://mastodon.gal/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a> <a href="https://mastodon.gal/tags/PolarArray" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#PolarArray</a>

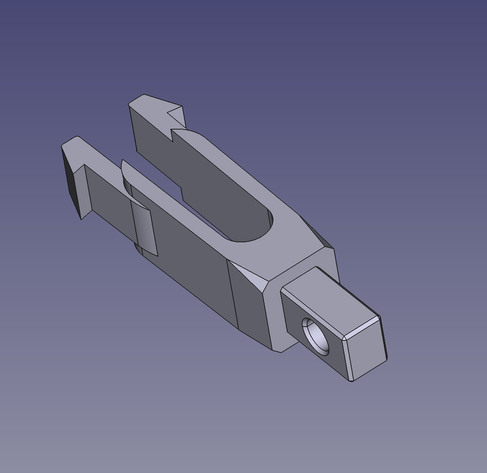

StefanoPart 3 of building the DIY seismograph. So continuing on the moving arm concept, I settled on using a servo motor as this could easily be driven by the Arduino. I had to make the arm very light so as not to put too much pressure on the small servo motor I was going to use. Here is the model of the arm. Although I went back and forth with different ends to hold the pen, ultimately I ended up going with this clip. Modeled in <a href="https://mstdn.ca/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a> <a href="https://mstdn.ca/tags/maker" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#maker</a> <a href="https://mstdn.ca/tags/diy" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#diy</a> <a href="https://mstdn.ca/tags/earthquake" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#earthquake</a> <a href="https://mstdn.ca/tags/arduino" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#arduino</a> <a href="https://mstdn.ca/tags/servomotor" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#servomotor</a> <a href="https://mstdn.ca/tags/seismograph" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#seismograph</a>

talpaNice! The latest <a href="https://fosstodon.org/tags/debian" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#debian</a> unstable version of <a href="https://fosstodon.org/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a> has the build in assembly workbench enabled.Did manage to crash it a couple of times, but must admit that it is quite nice.Also it didn't "blow up" when I added the screw holds in the blocks, the assembly just auto updated

Ari [APz] SovijärviJust out of curiosity, what kind of workflows do you <a href="https://mstdn.games/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a> or other CAD package users have for simple stuff you need to model for 3D printing or CNC'ing? I start with a crude Post-It note version and try to get all the measurements in that phase, so when I get to the good part, I can just keep on drawing without killing the flow. <a href="https://mstdn.games/tags/cad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#cad</a>

Ari [APz] SovijärviNext I wanted to deal with a very long time annoyance with Striker Xtreme, the *bestest pinball machine in the whole wide world. I've observed several different SX games having the same issue, where they at random fail to get the ball up from the goalie upkicker. Earlier we tried several different upkicker models, until the problem went away, which made me wonder about the original cause. It'd seem that the ball lands at the bottom of the whole kicker scoop, but the actual kicker solenoid's plunger is almost 1cm lower. This appears to send the ball flying up, but bouncing from the scoop walls, causing a lot of random movement.I modelled a tip for the solenoid that basically rests against the ball and has a concaved top. This design causes the solenoid to just lift the ball straight up instead of kicking it and causing it to bounce around the scoop walls.After installing this thing the first 25 test runs had zero failures. In this game the failure rate was at around 1 to 4 or more.<a href="https://mstdn.games/tags/pinrepair" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#pinrepair</a> <a href="https://mstdn.games/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a>

Tinx<a href="https://fosstodon.org/@FreeCAD" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@FreeCAD</a> I made a simple two-part reed switch holder to smartify my gas meter 🙂<a href="https://www.thingiverse.com/thing:7000619" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://www.thingiverse.com/thing:7000619</a><a href="https://jit.social/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a> <a href="https://jit.social/tags/FreeCADFriday" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCADFriday</a> <a href="https://jit.social/tags/SmartHome" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#SmartHome</a> <a href="https://jit.social/tags/IoT" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#IoT</a>

msx<a href="https://fosstodon.org/@FreeCAD" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@FreeCAD</a> I made a small buildable toy tank, to be printed in TPU. It's compatible with some other models i made in the past, all of which are available here: <a href="https://www.printables.com/@msx80_200946/collections/1801383" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://www.printables.com/@msx80_200946/collections/1801383</a>The tank was all made in <a href="https://livellosegreto.it/tags/FreeCad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCad</a> with a minor step in <a href="https://livellosegreto.it/tags/Blender" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Blender</a>

HuKI'm working on my roller-bearing. Tweaking physical parameters based on first 3D prints.I wish I could have on-screen visibility and scrollability of VarSet, when I'm working on the 3D view, Sketches, solids etc.I keep forgetting my variable logic in VarSets. Cognitive load is substantial.Then I resort to copy pasting expression values between constraints.This is my first major project (2nd part). Still learning best strategies, while also hoping for better UX to help <a href="https://sw-development-is.social/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a><a href="https://fosstodon.org/@FreeCAD" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@FreeCAD</a>

Kleiner Radler - resigniert<a href="https://fosstodon.org/@FreeCAD" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@FreeCAD</a> I will continue working on my project as soon as my races are finished. It will be an OpenSource velomobile. My goal is to ride it from Freiburg to Paris in 15 hours. Powered by <a href="https://freiburg.social/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a>

FreeCADIt's <a href="https://fosstodon.org/tags/FreeCADFriday" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCADFriday</a>! What are we all working on this week? <a href="https://fosstodon.org/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a>

bram dingelstad :nb_flag:i've made a <a href="https://gamedev.lgbt/tags/video" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#video</a> detailing my mini <a href="https://gamedev.lgbt/tags/rack" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#rack</a> server project ✨ its made to accompany this thread, so for more details you can scroll up and/or down :)<a href="https://gamedev.lgbt/tags/DIY" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#DIY</a> <a href="https://gamedev.lgbt/tags/3DPrinting" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#3DPrinting</a> <a href="https://gamedev.lgbt/tags/SysAdmin" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#SysAdmin</a> <a href="https://gamedev.lgbt/tags/Linux" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Linux</a> <a href="https://gamedev.lgbt/tags/Electronics" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Electronics</a> <a href="https://gamedev.lgbt/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a> <a href="https://gamedev.lgbt/tags/Homelab" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#Homelab</a><a href="https://bram.dingelstad.works/videos/making-a-mini-server-cluster/" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://bram.dingelstad.works/videos/making-a-mini-server-cluster/</a>

Chi ha ucciso Il Conte?Docomentation is very important... here is a short assembly manual that I made for the Chowndolo, using <a href="https://c.im/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a> and <a href="https://c.im/tags/inkscape" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#inkscape</a> as usual @la.lepre @halldorophone @intelligentinstruments <a href="https://c.im/tags/documentation" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#documentation</a> <a href="https://c.im/tags/cad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#cad</a> <a href="https://c.im/tags/floss" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#floss</a> <a href="https://c.im/tags/axonometric" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#axonometric</a> <a href="https://c.im/tags/2d" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#2d</a> <a href="https://c.im/tags/design" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#design</a> <a href="https://c.im/tags/vectorgraphics" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#vectorgraphics</a> <a href="https://c.im/tags/instructionspamphlet" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#instructionspamphlet</a> <a href="https://c.im/tags/instructions" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#instructions</a> <a href="https://c.im/tags/sound" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#sound</a> <a href="https://c.im/tags/musicalinstruments" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#musicalinstruments</a> <a href="https://c.im/tags/assembly" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#assembly</a>

Chris Huck :freecad: :ubuntu:I've updated my LastSTEP <a href="https://fosstodon.org/tags/FreeCAD" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FreeCAD</a> macro to v2025.03.31 with the ResetPlacement functionality requested by <a href="https://gts.amd.im/@amd" class="u-url mention" rel="nofollow noopener noreferrer" target="_blank">@amd</a> You can check it out here: <a href="https://github.com/chrishuck/LastSTEP" rel="nofollow noopener noreferrer" translate="no" target="_blank">https://github.com/chrishuck/LastSTEP</a>Feedback is always welcome.

Ari [APz] SovijärviAs I swapped out the winter tyres for summer ones today, I checked out the hubcaps I made last fall and they all were in perfect shape.I replaced my pinball hauling vehicle last fall and I had gotten used to the Volkswagen T5's minimalistic hub caps. Ford Transit had had those at some point but all that was sold these days was beaten up ones for very high price on eBay.So I recreated the hubcaps in FreeCAD and printed them out of ASA. They're soft enough to snap on without violence, but they also stick on just as well as the Volkswagen version. I stole the wheel bolt attaching design from them.<a href="https://mstdn.games/tags/3dprinting" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#3dprinting</a> <a href="https://mstdn.games/tags/freecad" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#freecad</a> <a href="https://mstdn.games/tags/ford" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#ford</a> <a href="https://mstdn.games/tags/FordTransit" class="mention hashtag" rel="nofollow noopener noreferrer" target="_blank">#FordTransit</a>
